продам: VHF FM Receiver SR-11
05.04.2026 22:29
Дмитрий - UR5RGS
104
104

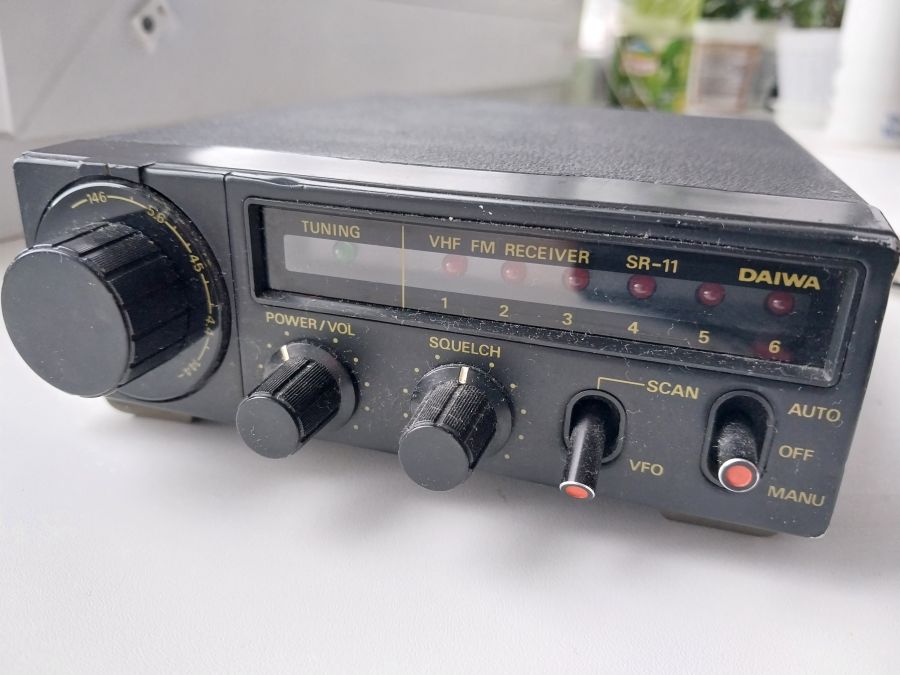

Продам в хорошому робочому станіVHF FM Receiver SR-11.
Технічні характеристики з сайту: https://www.rigpix.com/miscrx/daiwa_sr11.htm
Type: VHF receiver/scanner
Frequency range
depending on version: 1: 144-146 MHz
2: 144-152 MHz
Tuning steps: Analog / continuous
Frequency stability: ? ppm
Mode: FM
Channels / memory management: 6 optional
XTAL controlled
Power supply: 11.5-15 VDC (Fixed power cord)
Current drain / power consumption: ? mA
Antenna impedance / connector: 50 ohm / SO-239
Dimensions (W*H*D): 135*45*155 mm (5.32*1.77*6.1")
Weight: 800 g (1.76 lb)
Other features: Scanning.
RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
Sensitivity: 1 uV (10 dB S/N)
Squelch sensitivity:
Noise figure:
Selectivity: 15 KHz (-6 dB)
30 KHz (-40 dB)
Image rejection:
AF output power / speaker: 2 W at ?% distortion / 8 ohm
External speaker connector:
MISCELLANEOUS
Manufactured: Japan, 1978-19xx (Discontinued)
Ціна договірна(пропонуйте)
тел/вайбер: 098-441-34-84
пошта: [email protected]
Дмитро
Додаткову інформацію можна глянути ще тут: https://www.radiomuseum.org/r/daiwa_vhf_fm_receiver_sr_11.html
